Agents

• Back to EdgeGuard Central — Dashboard Guide

A collector is the agent's counterpart behind the proxy: it reads what is installed on an application server and reports it, and takes no commands at all. This page is about the agent.

An agent is the decision engine.
The console is where policy is written; the agent is what applies it, next to nginx, on every request. One agent serves one or more sites, pulls its configuration from the console, and reports back what it did.

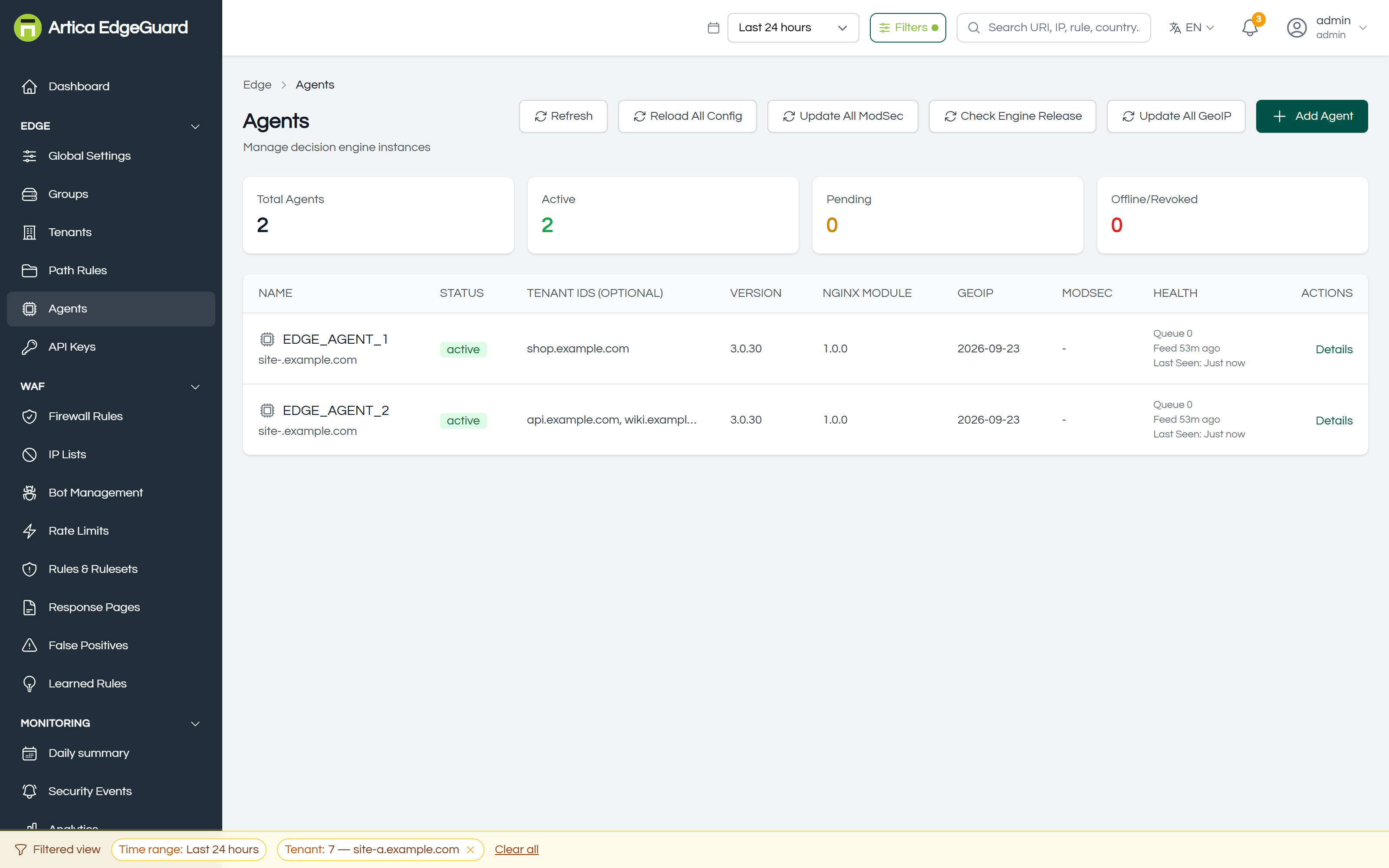

What the list tells you

The four counters above the table — total, active, pending, offline/revoked — are the quickest answer to "is the fleet healthy?".

An agent that stops reporting is marked offline automatically. Nothing else happens to it: the last configuration it pulled is still in force at the edge, because an engine that cannot reach the console must keep protecting the site rather than stop.

Is nginx actually consulting the agent?

STATUS answers whether the agent is talking to the console. It does not answer whether nginx is talking to the agent, and those are different questions with the same green badge.

An agent can be running perfectly, pulling its configuration and reporting its health, while nginx never asks it anything — the module not loaded, security_check not switched on for the server block, or the socket owned by a user nginx does not run as. The site is then served without being examined, and the console shows an active agent with no events, which looks exactly like a site nobody attacks.

The NGINX MODULE column is what separates them, because the only way that value can be known is from a request the module itself sent:

"No recent request" is a question, not a verdict. A site with no visitors and a site nginx has stopped consulting send exactly the same thing — nothing — so the figures cannot tell them apart. Make one request to the site: if the agent still reports nothing, nginx is serving that traffic without examining it.

The first two also raise a notification, so they reach you without anyone watching the table. The third is deliberately a warning rather than an alert, for the reason above.

If it says "not consulting"

Three things cause it, in the order worth checking:

1. nginx was not reloaded. nginx -T reads the configuration files and does not prove the running process loaded them. What proves it is grep -c ngx_http_security /proc/$(cat /run/nginx.pid)/maps.
2. security_check is not on for the server blocks that matter. It is off unless switched on.
3. nginx cannot open the socket. The engine reports this one itself, on its next heartbeat, rather than leaving the reason in a log file at boot — and from engine 3.1.6 the message carries the exact command for that machine.

nginx -V will never show the module, before or after a successful install. It prints a string fixed into the binary when nginx itself was compiled, so a module loaded later with load_module cannot appear in it. Checking there and finding nothing says nothing at all.

The honest test is a request. Every reply EdgeGuard examined carries an x-edgeguard-id header:

curl -sI https://your-site/ | grep -i x-edgeguard-id

A reply with one was examined, whatever the status code. A reply without one was not examined at all — which is this column's whole subject.

Running EdgeGuard beside an nginx you manage yourself? See Install EdgeGuard on a standalone nginx, which covers the socket handover, building the module for a distribution nginx, and the log lines that look like faults and are not.

How an agent and the console talk

Two conversations, both started by the agent — the console never connects inwards, which is what lets an agent sit behind NAT or in a customer's data centre:

1. Configuration pull, about every 30 seconds. The agent asks for everything: settings, rules, IP lists, bot rules, rate limits, response templates, exclusions, accepted learned rules. It stores them in a local SQLite cache and serves decisions from that, so a console outage does not stop protection.
2. Heartbeat, on the same rhythm. The agent reports its versions, health and counters — firewall-rule hits, bot-rule hits, ruleset hits, exclusion hits, endpoint shapes, learned-rule evidence — and central folds them into the pages you read.

Everything you change in the console therefore reaches the edge within about half a minute, and nothing needs restarting.

Registering an agent

1. Click Add Agent.
2. Name it — e.g. Production Agent 1. Use something that will still make sense when there are six.
3. Tick the domains this agent will protect.
4. Create, and copy the key it shows into the agent's configuration file.
5. The agent appears as pending until it reports in, then active.

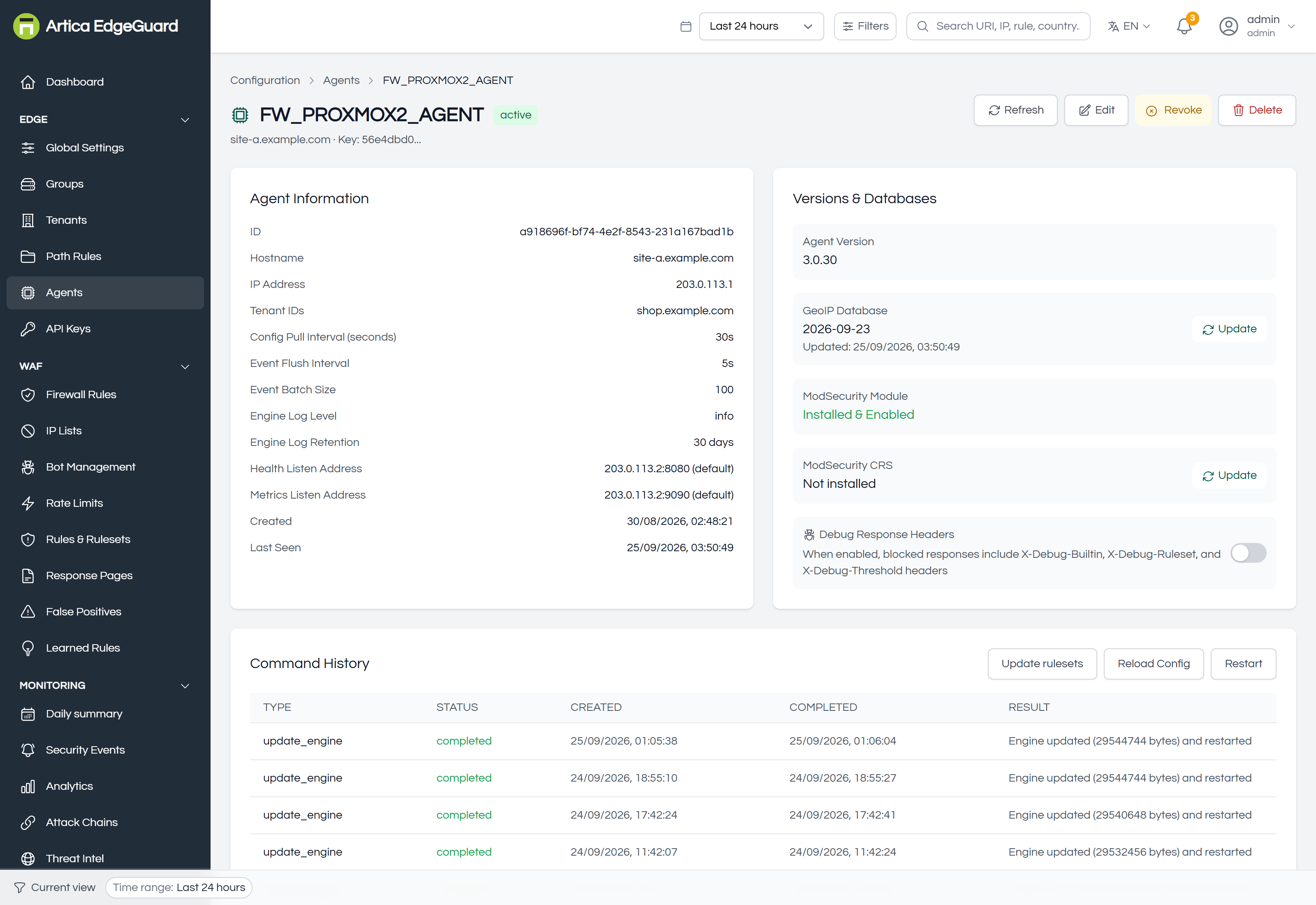

The details panel

Details on a row opens everything known about one agent, in three parts:

• Agent Information — identity, address, hostname, the sites it serves, status and last heartbeat.
• Versions & Databases — engine, nginx module, GeoIP date, CRS version. This is where you see that one agent is behind the others, which is the most common cause of "why does that site behave differently?".
• Command History — what has been asked of this agent and what came back. A failed update is visible here rather than silent.
• Installed software — what this node's own package manager reports, read from dpkg. Filter by package, source package or version.
• Known vulnerabilities — what Debian's security tracker says about those versions.

Known vulnerabilities on a node

The agent reports its installed packages with its heartbeat, and the console correlates them against the Debian Security Tracker once a day. The result is grouped by source package, which is not cosmetic: a real pass over an ordinary Debian machine produces around 4,500 findings, most of them from the kernel. Grouped by source it is about a hundred rows, and each row is an action, because apt upgrades a source package and not a CVE.

Three numbers at the top divide a large list into the parts that mean different things:

The Installed (source) column deserves a note. Security data names the version a fix landed in by source version, and a binary package built from that source frequently carries a different number. Comparing the binary's version against a source fix version is how a node reports hundreds of findings for issues patched years ago; the column shows what was actually compared.

An empty list is not a clean node. A node that was never correlated, or whose package database could not be read, says so where the findings would be. Treat the two as different facts, because only one of them lets anyone say "nothing vulnerable here".

The commands

Available for one agent from its panel, or for the whole fleet from the buttons above the list:

Revoke is not a pause. A revoked agent is told so on its next heartbeat, stops serving decisions and wipes its local cache — sites, settings, rules, lists, everything it had pulled. It is the right action for a machine that has left your control, and the wrong one for an agent you intend to bring back in an hour.

Keeping a fleet consistent

• Versions. Compare the VERSION column across the list; an agent left behind will be missing fixes the others have. Use Check Engine Release, then Update All or one agent at a time.
• GeoIP dates. A stale database means country conditions and datacentre challenges judge on old data.
• Rule feed. The HEALTH column says when the feed last updated. An agent whose feed is a month old is running last month's detection.
• Queue depth. A queue that is not draining means events are not reaching the console — usually a network path, occasionally a console that is down.

Verifying an agent

1. Is it talking? The list shows active and a recent Last Seen. If not, check that the agent can reach the console's address and that its key has not been revoked.

2. Is it enforcing what you think? Change something small — an IP list entry for a test address — wait 30 seconds, and make a request. The decision at the edge is the proof; the console alone only proves what was written down.

3. What is it running? The agent's own status endpoint answers locally:

curl -s http://127.0.0.1:8083/status | head -40

It reports the engine version, uptime, storage backend, the rule feed date and the slowest recent decisions — which is the first place to look when one site feels slower than the others.

When an agent looks wrong
