The Unix console features a special menu enabling you to specify the initial parameters for linking to the proxies farm.
This feature has been enhanced in Artica v4.50 Service Pack 7 or Artica v4.50 Service Pack 6 Hotfix 20260321-11
- First, obtain the registration token from the HACluster server.
In the main section, click on "New backend", then "Register", and note the registration token.

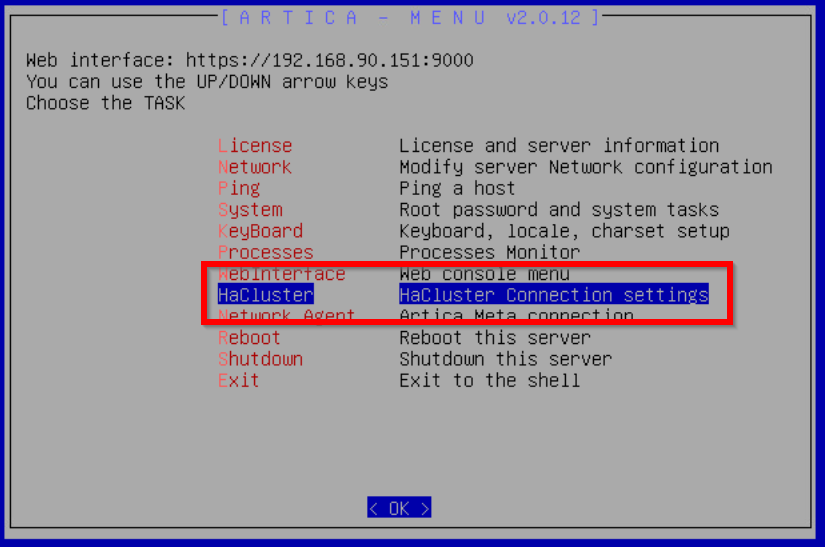

- On the Unix console select the menu HaCluster

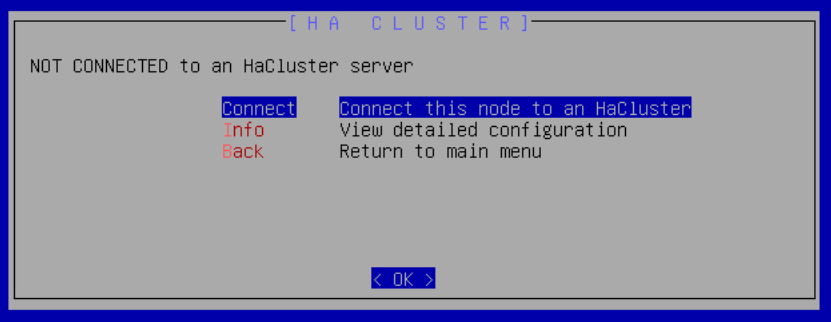

- On the HaCluster menu, choose the “CONNECT” menu

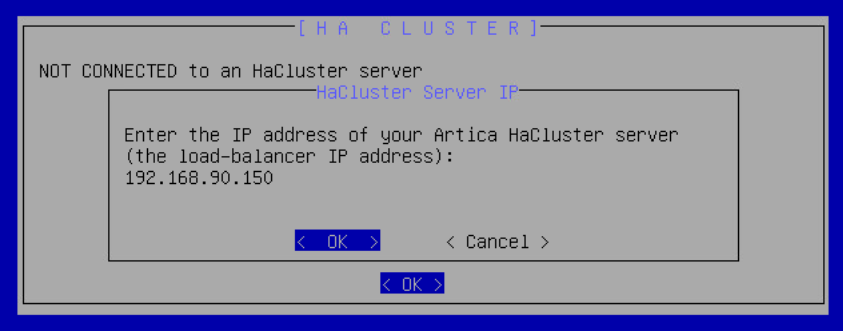

- Entre the IP address of your HaCluster Load-balancer server address

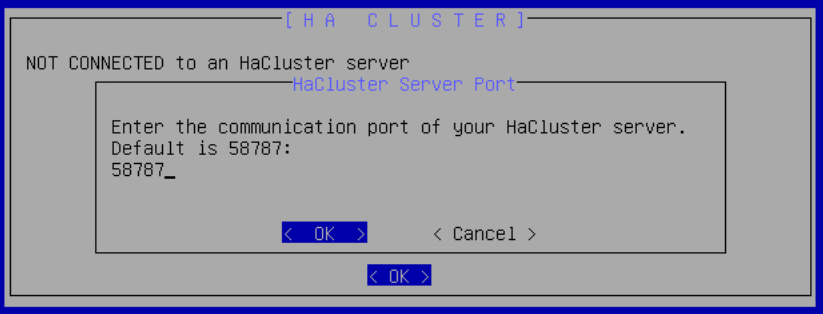

- Enter the communication port of Your Load-balancer ( usually the
58787)

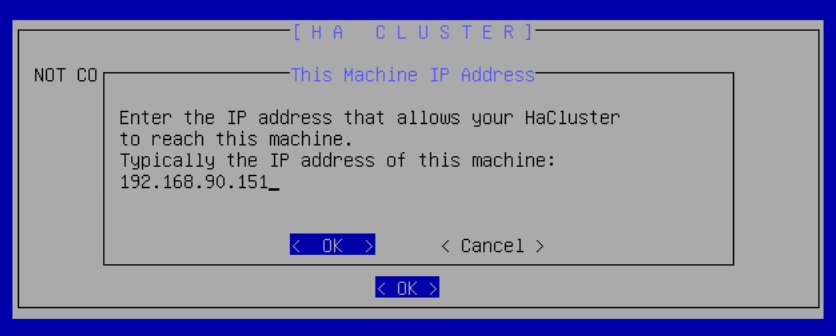

- Set the IP address used to connect to the node ( usually the IP address of your server )
- If you have multiple network interfaces, specify the interface that will allow the node to communicate with port 58787 on the HACluster server.

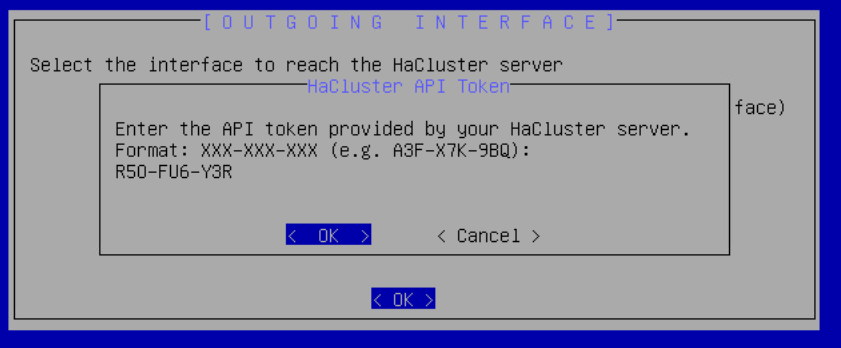

- Enter the token you retrieved from the HACluster server (see the first screen of this guide).

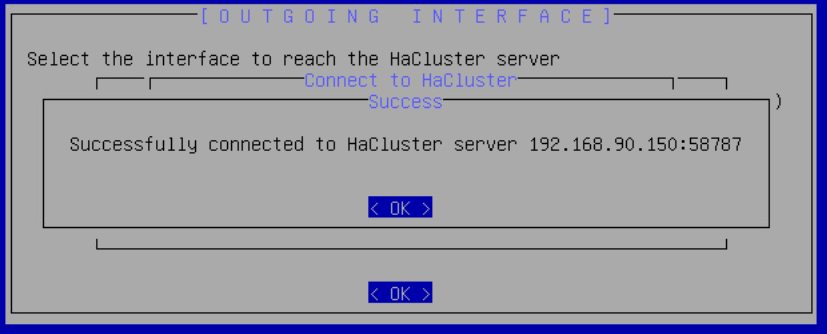

Your Cluster node will install the HaCluster client and will receive order to install the proxy service.
