ActiveDebianSync Cluster replication

Mesh (any-to-any) cluster replication, allowing multiple nodes to synchronize repository

Back to the ActiveDebianSync main section

Mesh (any-to-any) cluster replication supports synchronizing repository content and configuration across multiple nodes using a fast, compressed TCP protocol.
The mesh topology allows any node to push or pull compressed data from any other node.
Replication uses delta synchronization, meaning only changed files are transferred based on SHA256 checksums.
Each replication cycle between nodes is executed automatically after every synchronization task.

Statistics tracking: All replication events are recorded incluster.db database

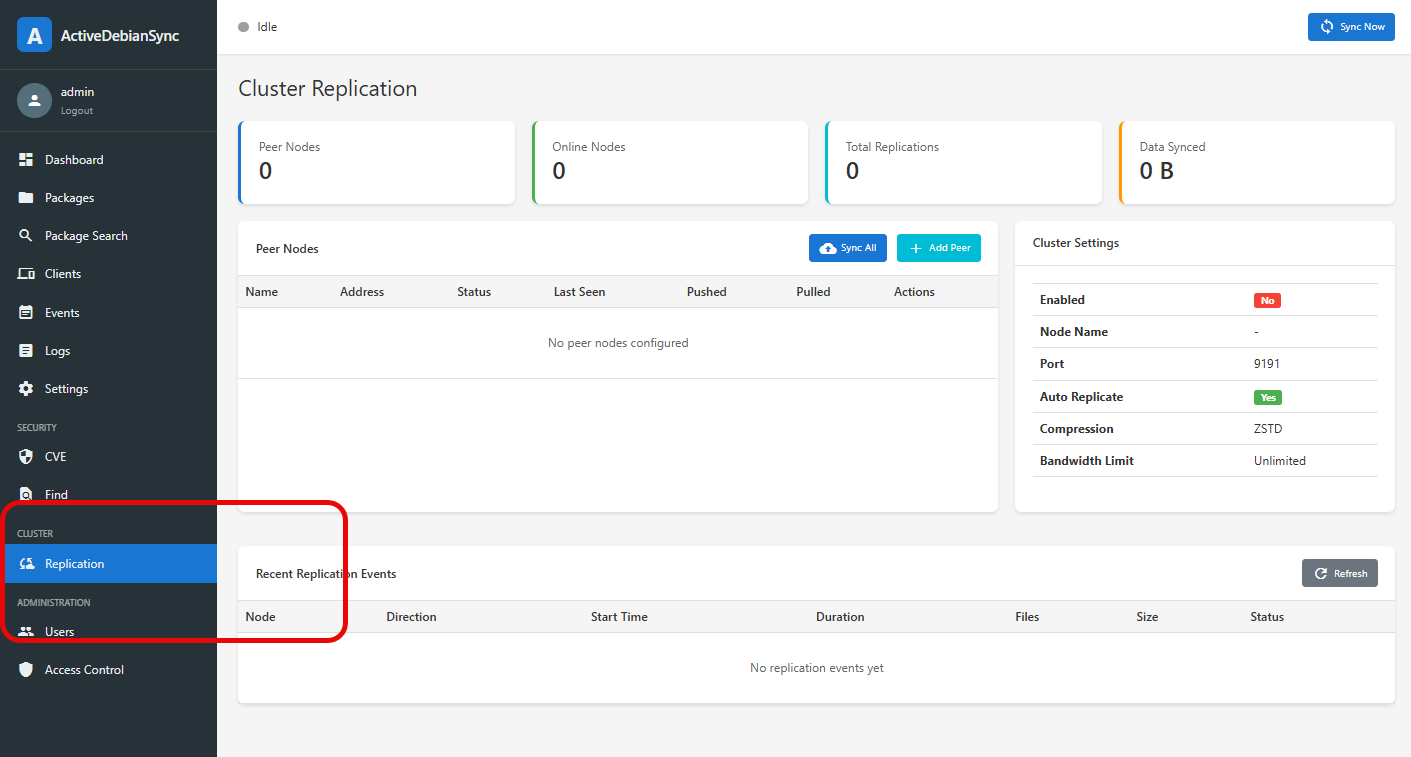

Configuration via Web console

replication activity

Manual configuration

Add the following settings to your config.json:

{
"cluster_enabled": true,
"cluster_node_name": "node1",
"cluster_port": 9191,
"cluster_auth_token": "your-secret-token",
"cluster_peers": [
{
"name": "node2",
"address": "192.168.1.102:9191",
"enabled": true
},
{
"name": "node3",
"address": "192.168.1.103:9191",
"enabled": true
}
],
"cluster_auto_replicate": true,
"cluster_compression": "zstd",
"cluster_bandwidth_limit": 0
}

Option	Type	Default	Description
`cluster_enabled`	bool	`false`	Enable cluster replication
`cluster_node_name`	string	`""`	Unique identifier for this node
`cluster_port`	int	`9191`	TCP port for replication connections
`cluster_auth_token`	string	`""`	Shared secret for authentication. This token must be identical on all nodes in the cluster.
`cluster_peers`	array	`[]`	List of peer nodes
`cluster_auto_replicate`	bool	`true`	Automatically replicate after sync
`cluster_compression`	string	`"zstd"`	Compression method: "zstd", "gzip", "none" ( zstd is the best )
`cluster_bandwidth_limit`	int	`0`	Bandwidth limit in KB/s (0 = unlimited)

Peer Configuration

Each peer in cluster_peers has:

Field	Type	Description
`name`	string	Friendly name for the peer
`address`	string	Hostname or IP with port (e.g., "192.168.1.100:9191")
`enabled`	bool	Whether to include this peer in replication

RESTAPI

GET /api/console/cluster/status
Get Cluster Status, returns cluster configuration and current replication status.

GET /api/console/cluster/stats
Get Cluster Statistics, returns aggregated statistics:

Total nodes
Online nodes
Total replications
Total bytes synced
Active replications

GET /api/console/cluster/nodes
List Peer Nodes, returns all configured peer nodes with their status and statistics.

POST /api/console/cluster/nodes/add
Add Peer Node

Content-Type: application/json
{
  "name": "node2",
  "address": "192.168.1.102:9191",
  "enabled": true
}

POST /api/console/cluster/nodes/remove
Remove Peer Node

Content-Type: application/json
{
"name": "node2"
}

POST /api/console/cluster/replicate
Trigger Replication

Content-Type: application/json

Replicate to all peers:
{}
Replicate to specific peer (push)
{
"peer": "node2", "direction": "push"
}
Pull from specific peer
{
"peer": "node2",
"direction": "pull"
}

GET /api/console/cluster/history?limit=50
Get Replication History, returns recent replication events.
